Atlantis Flo-Tanks Sub-Grade - Crate Style Tanks

Products:

Atlantis Flo-Tanks Sub-Grade - Crate Style Tanks

Atlantis® Flo-Tanks developed by Atlantis Corporation over 20 years of on-going research and improvement as a stormwater management system that is superior to and more flexible than the traditional gravel and pipe systems.
Atlantis® Flo-Tanks have a proven record making them the market leaders.

Atlantis® Flo-Tanks™ are manufactured from recycled polypropylene and are shipped as a ‘flat pack’ to minimise transport and on-site storage costs.
The tanks simple peg and hole on site assembly ensures lower labour costs and their lightweight elements enable assembled tanks to be readily manhandled on site.

Atlantis® Flo-Tank’s high void to solid ratio maximises the tanks in ground water storage capacity, this minimises the tank’s footprint and it’s open internal structure ensures a high flow rate when used as a pipe. Being modular the final in-ground tank configuration can be set-out and shaped as required.

Features:
- Range of Flo-Tank™ sizes allowing unlimited tank footprint and invert options allowing it to be configured and shaped as required.
- High load bearing capacity, can be used under carparks, driveways and road edges.
- Load bearing capacity can be engineered to suit by varying by number of internal cross plates.
- Special cross plates available to give horizontal linear access for either inspection and flushing / maintenance and or horizontal pipes passing thru length of the tank.
- Residential ‘GFA In Tank’ gross pollutant filter module available
- Atlantis® Flo-Tanks certified to AS/NZ 4020:2005 for potable water.

Applications:
- Subsurface Stormwater Retention
- Subsurface Stormwater Detention
- Subsurface Stormwater Infiltration / Recharge of Aquifers
- Subsurface Stormwater Harvesting And Re-use
- Grass Swale Systems
- Light Weight Void Fillers For Planter Boxes And Roof Gardens

Website: www.atlantiscorp.com.au
Download Specification Sheet

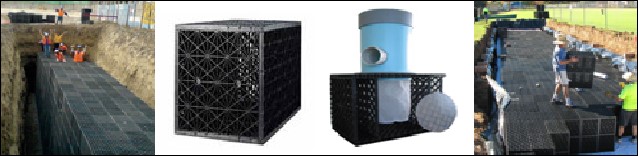

Click thumbnail to enlarge
