Huesker Soiltain Sludge Dewatering Tubes

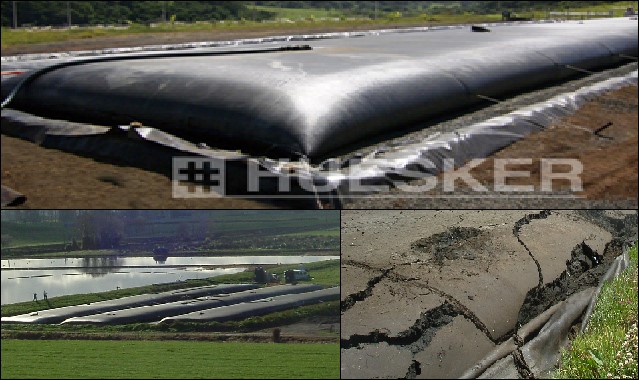

SoilTain® Dewatering Tubes and Bags (pillows)are a containment system designed for dewatering a wide variety of silts and sludge types. The tubes and bags are sized as required and fabricated from a high tensile strength woven permeable geotextile.
When filled with fine grain silt or slurry / sludge the material is dewatered as the filtrate component permeates out thru the geotextiles pores, the tubes act as a permeable gravity settling container.
To minimize the footprint of an installation the tubes can be stacked vertically, ie: new tubes can be placed on dewatered tubes.

Tubes and can be supplied up to a maximum 27 metre circumference and with a maximum wet sludge capacity of 2,000 cubic metres.

Applications:
- Municipal sewerage pond sludge
- Stormwater run-off settling pond sludge.
- Watercourse silts and sludge.
- Dredged contaminated silts and sludge from waterways, harbours, marinas and rivers.
- Coal mine settling ponds, separation and recovery of coal fines
- Mining industry and industrial sites generally, dewatering of settling pond sludge.
- Dairy and piggery units, dewatering of wash down / effluent settling ponds.
